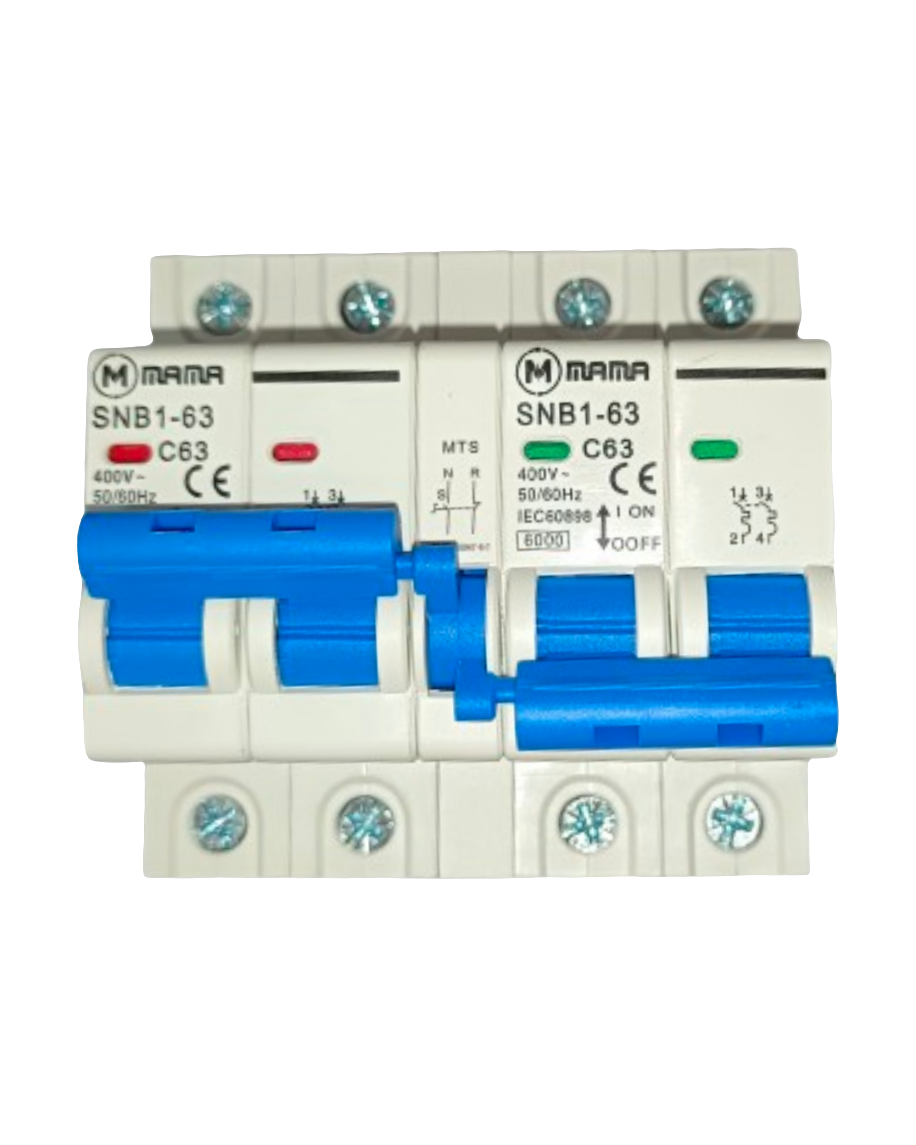

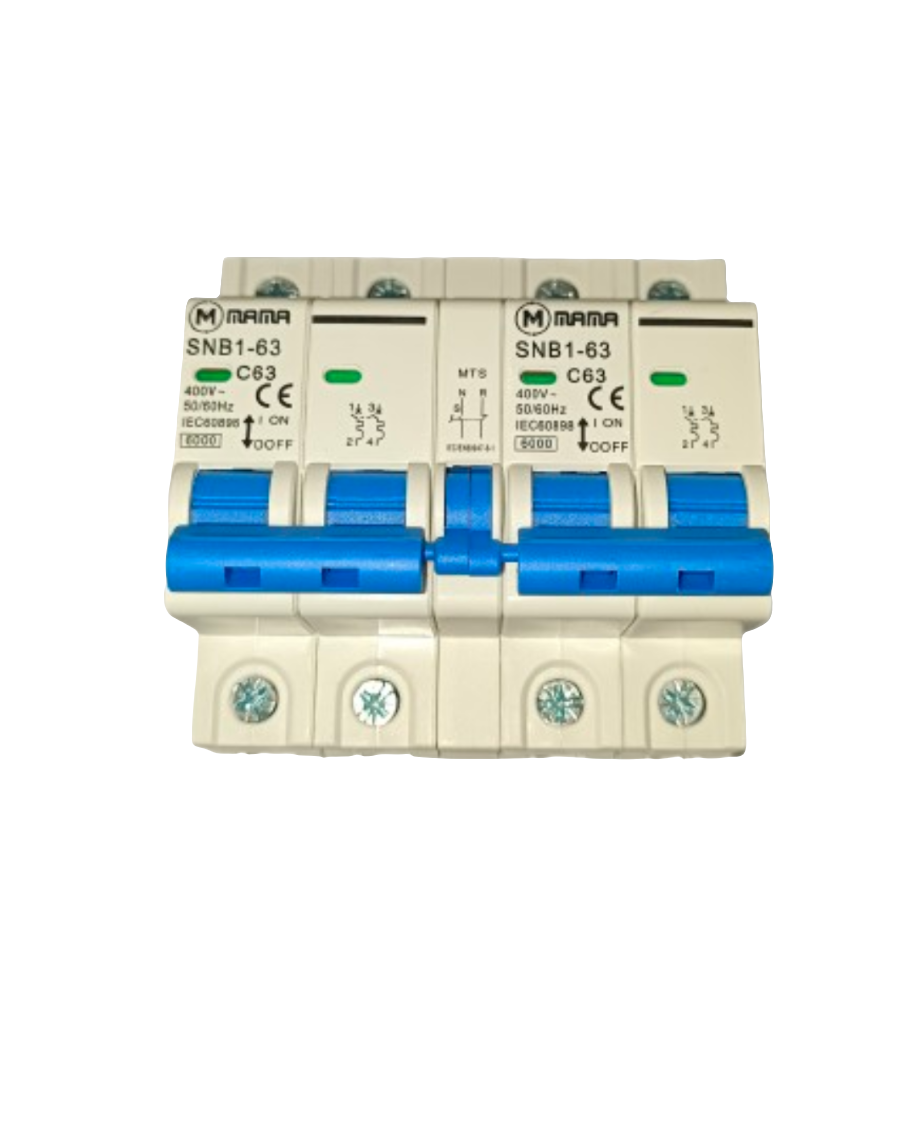

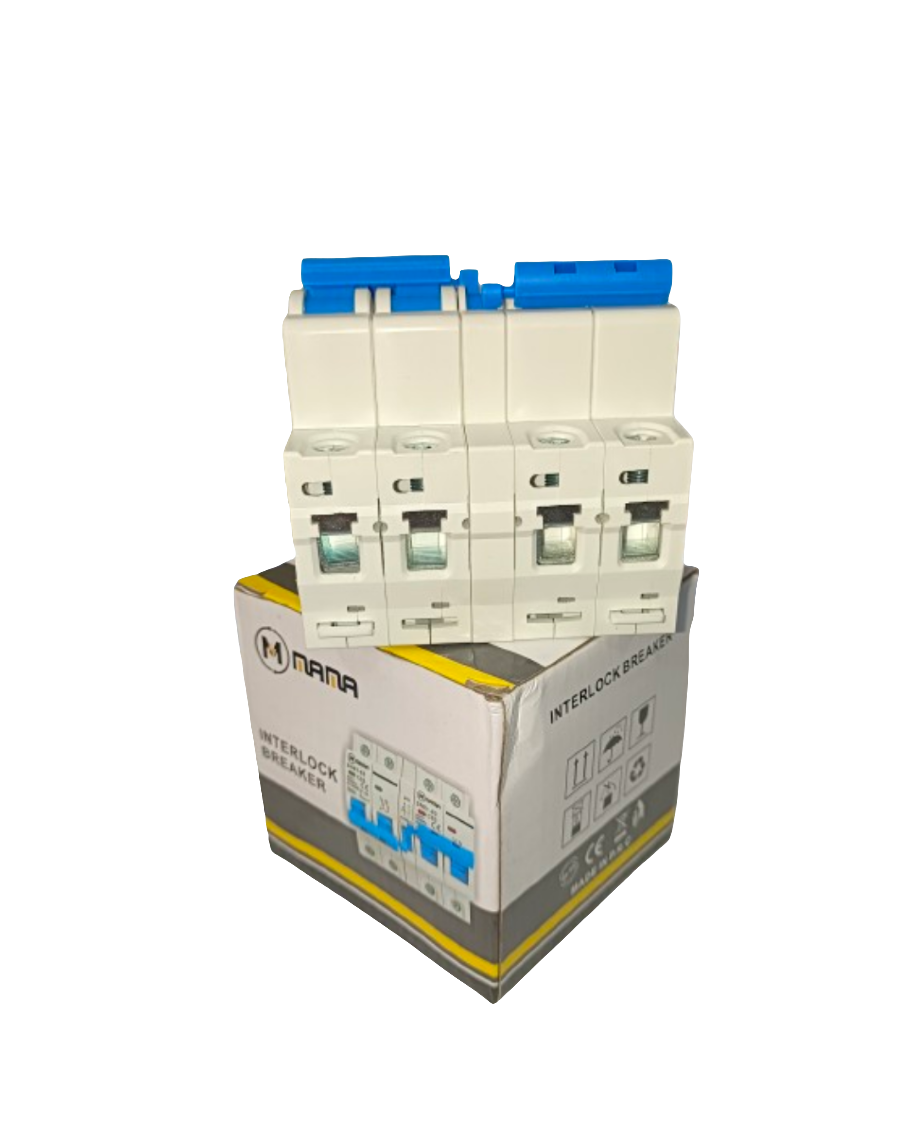

2P+2P MTS inter Lock changeover

Product details of 2P+2P MTS ma ma AC Dual power Manual transfer switch Circuit breaker MCB 50HZ/60HZ
• manual transfer switch for dual power supply.• Suitable for electrical circuitry and parts in DIY projects.
Overview

TOB1-63H MTS manual transfer switch is suitable for two-path power supply system with AC 50 HZ/60HZ, rated working voltage 240V~400V, rated current from 6A ~ 125A. It can manually transfer power supply to reserve power or generator when common power occurring fault so as to guarantee the reliability and safe of supply power. TOB1-63H MTS has the protective function of overload, under-voltage, short circuit and lack phase which is especially suitable for using in the place where does not allow power supply failure, such as fire fighting, hospital, marketplace, military project, high-rise building, bank, TV station and so on.

Rated voltage: 230V 50/60Hz

Breaking capacity: Rated current: 63A
